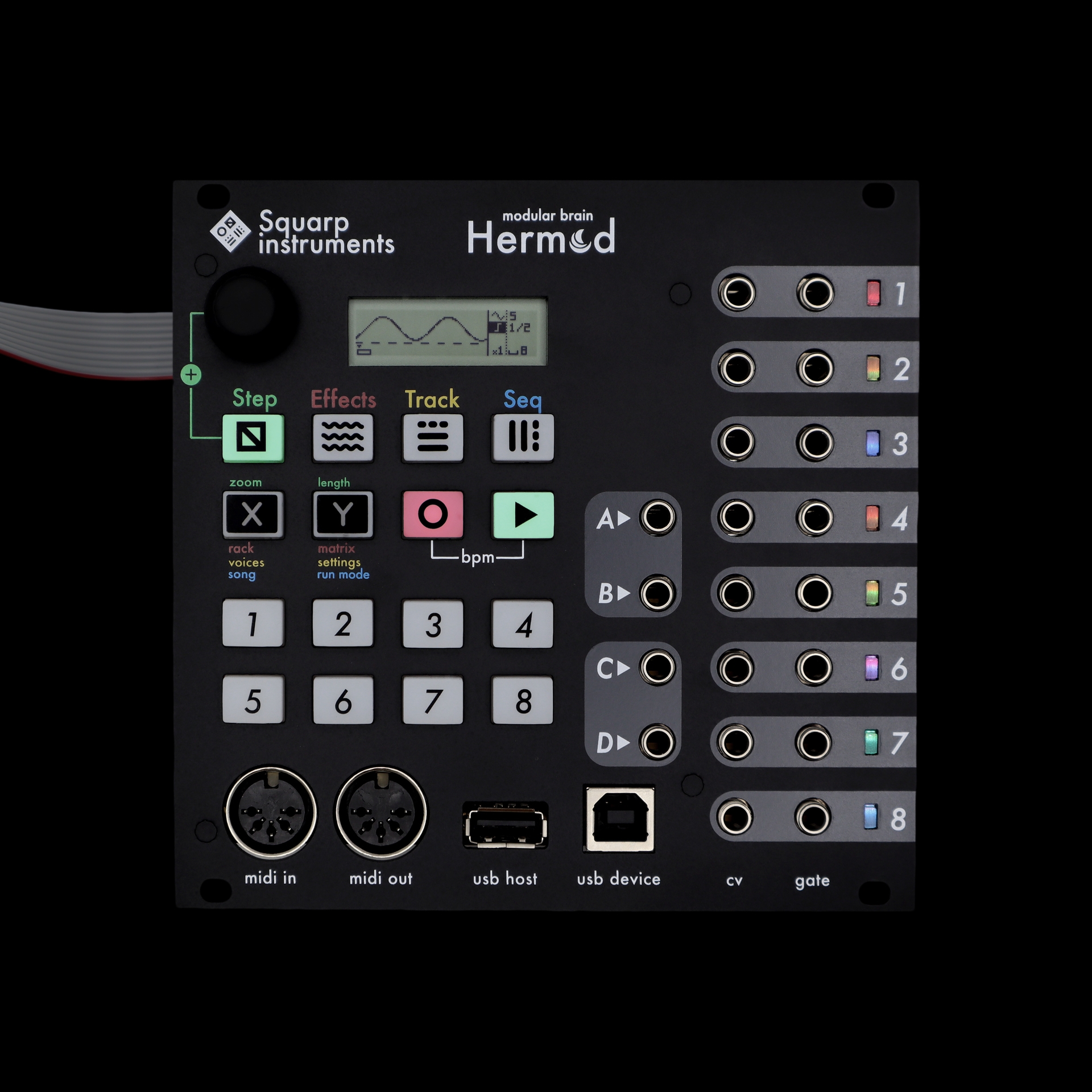

Hermod modular brain
The 8-track sequencer & interface for your eurorack system.
Discontinued

See on
Modulargrid



Perfect for composition and live performances

Hermod brings together an advanced step sequencer, a CV looper, a real-time effect processor, LFO generators and a complete bi-directional MIDI-USB-CV input/output interface.

Record a performance at any time thanks to the CV inputs, the USB HOST, the USB DEVICE and the MIDI input, quantized or not. Create and edit your tracks with the STEP mode and its piano roll & automation view. Generate crazy patterns with the randomization tool.



Hermod is polymetric, it means that each track can have a different length, from 1 step to 64 steps. Moreover, you can zoom in to increase the resolution of the step sequencer (up to 512 steps).

Dynamic effects

All the fun in Hermod resides in its effect system, allowing you to transform input signals, whether it's MIDI or CV. You can stack on each track up to 8 real-time effects: Quantize, Swing, Arpeggiator, Ratchet, Random, Euclid, Glide, Harmonizer, Delay, Chance, Scale, LFO... Experiment with the effects position and parameters to generate groovy rhythms and eccentric melodies!



Every effect parameters can be edited in the EFFECTS mode, or with midi CC messages & CV inputs, thanks to the modMatrix.

Polymorphic tracks

Thanks to Hermod architecture, a track can be a simple mono CV/GATE voice, but can be easily configured as a polyphonic track (up to 8 voices), a CV/GATE + velocity + aftertouch track, a modulation + clock track... in order to perfectly fit your eurorack system!

Sequences and Projects

The 8 tracks are grouped into one of Hermod’s 8 sequences. Every sequence is totally independent and contains a new set of tracks to be played with, for a total of 64 tracks in a single project.



The number of projects is unlimited and the save/load can be done quickly without losing the tempo, allowing you to jump from one song to the next in your live performance.

CV/Gate - Midi - USB interface

Full connectivity: control Hermod with plug-and-play midi USB devices, midi keyboards, computers or other eurorack CV systems.

Hermod is also a great midi hub, allowing you to sequence midi synthesizers/drum machines and computer's virtual instruments. Of course, Hermod can be perfectly paired with Pyramid or other hardware and software sequencer, in order to benefit from its CV/GATE outputs.

With Hermod's rock-solid clock, this module becomes a great synchronization tool for all your setup! Thanks to its powerful CPU, even when synced, Hermod allows an ultra-low latency to make the perfect link between the digital world and the analog world.

Squarp tutorial
Video
Cuckoo – Tutorial
Video
Loopop – Review
Video
Red Means – Walk Through
Video
Dawless Jammin' – Review
Video
Ann Annie
Video
Hainback
Video
/specifications
Core player

  • Number of tracks: 8
  • Number of sequences: 8
  • Number of projects: unlimited
  • Number of events (notes, automation) per project: ~80000
  • Recording resolution: 24ppqn
  • Tempo: 1 to 250 BPM


Tracks

  • Maximum number of notes per step (polyphony): 16
  • Maximum number of effects per track: 8
  • Maximum number of modMatrix destinations per track: 4
  • Automation per track: 4 (modulation, pitchbend, aftertouch, sustain)
  • Note pitch: C0 to C10
  • Note velocity: 0 to 127
  • Note width: 1/24th to 16 bars
  • Track length: 1/16th to 16 bars (64 1/4 notes)
  • Zoom: x1 (1 step = 1 quarter notes) to x8 (1 step = 1/32th note)


Inputs

  • MIDI (control Hermod with a MIDI controller)
  • USB host (control Hermod with a computer)
  • USB device (control Hermod with an USB controller)
  • 4x CV in [-5V to +5V] (control Hermod with CV/GATE notes, CV modulation, clock)


Outputs

  • MIDI (sequence/control your MIDI synthesizers with Hermod)
  • USB host (sequence/control your computer with Hermod)
  • USB device (sequence/control your USB devices with Hermod)
  • 8x CV out [-5V to +5V] (= midi range C0 to C10, with C5 = 0V)
  • 8x GATE out [0V to +5V]


User interface

  • 16 backlit silicon button pads
  • Menu clickable encoder
  • White backlit high contrast LCD screen
  • 8x RGB LEDS to display the CV/GATE output voltages
  • MicroSD card slot to save/load your projects and upgrade the OS (SD card included)
  • Real time save/load: regardless of its own clock source, it keeps receiving and sending midi/usb/cv clocks, in order to be always perfectly synchronized.


Other

  • DAC (CV outputs) resolution: 16-bit (= 0,15mV precision!)
  • ADC (CV inputs) resolution: 12-bit
  • Width: 26HP (up to 30mm in depth)
  • Weight: 290 gr (0.64 lbs)
  • Requires a ±12V eurorack supply (consume 310mA from the +12V rail and 30mA from the -12V rail)


Engineered in Paris and assembled in France.
Package made from recycled EVA foam and cardboard.

User guide
